IHI Water Injected Screw Compressor
Product Overview
The IHI GP Series introduces innovative water-injected, oil-free technology designed to deliver ultra-clean compressed air for industries demanding zero contamination. Featuring low maintenance, reduced energy consumption, and exceptional reliability, it’s the ideal solution for food processing, pharmaceuticals, electronics, and precision manufacturing.

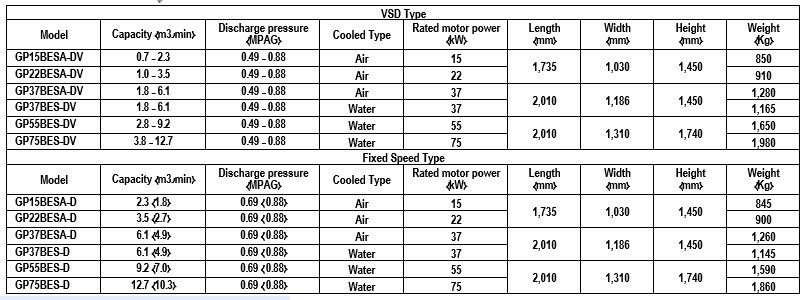

Power Range: 15 – 75 kW
Flow Capacity: 0.7 – 12.7 m³/min
Discharge Pressure: 0.69 – 0.88 MPa
Features
Ultimate Oil-Free
100% oil-free compressor operation
Zero risk of air contamination from compressor oils
Lower Energy Consumption
Reliable Structure

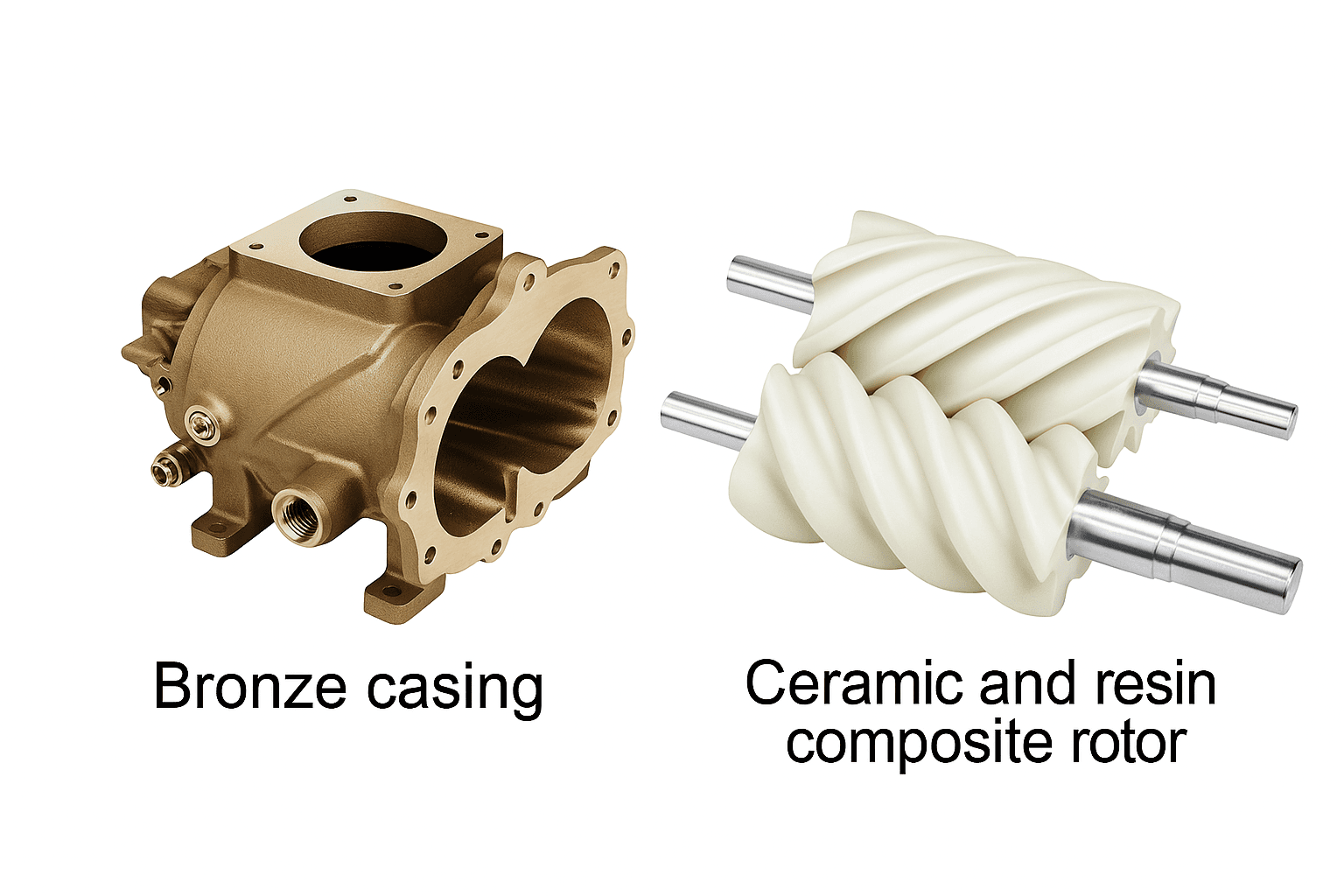

Built with anti-rust materials:
Ceramic and resin composite rotor
Stainless shaft
Bronze casing

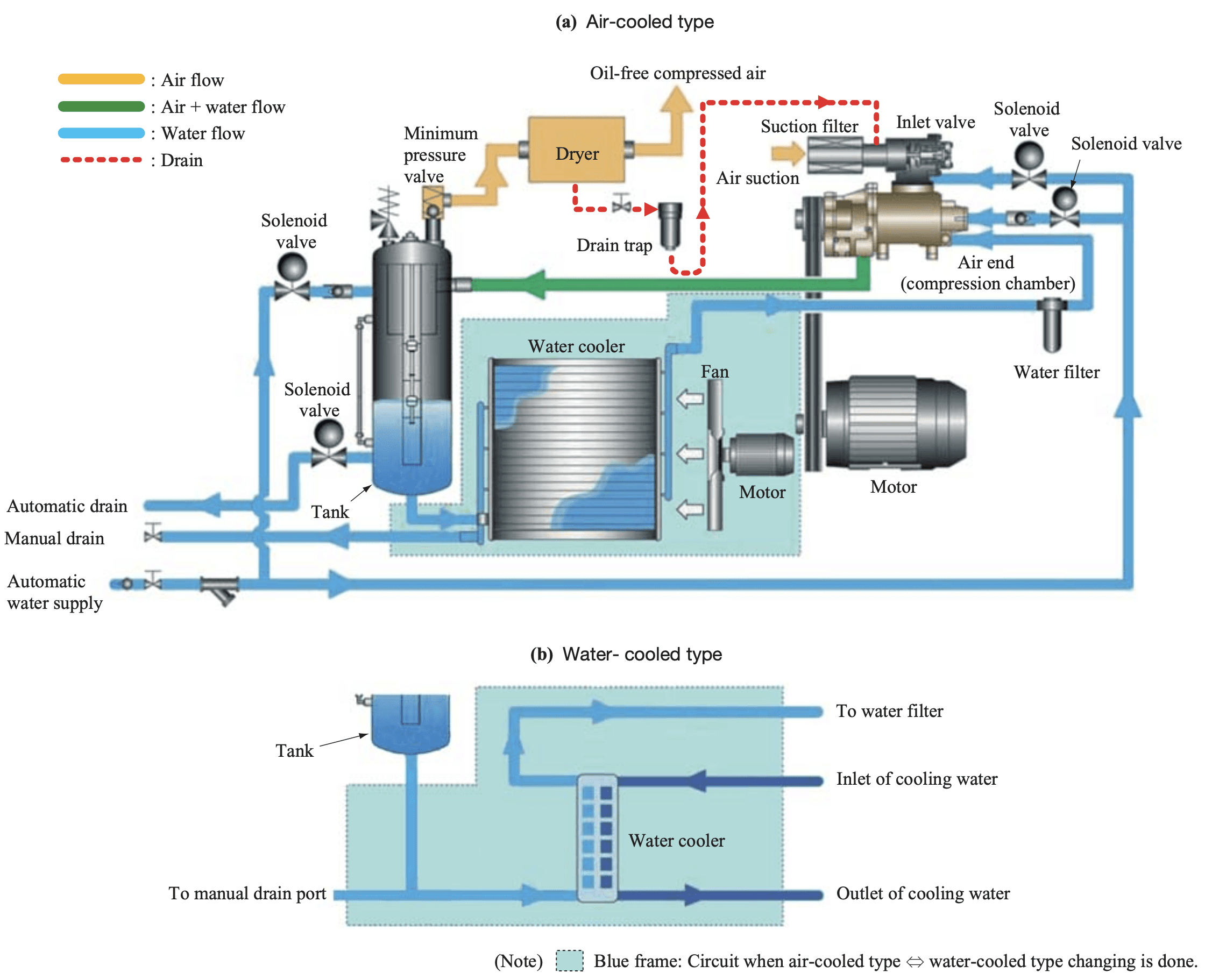

Equipped with a self-recycling water system to maintain water quality
High-Efficiency
Prevents air leakage using water seal
Delivers higher discharge air compared to dry screw models
Reduces overall energy consumption
Easy Maintenance
Simplified single-stage rotor design

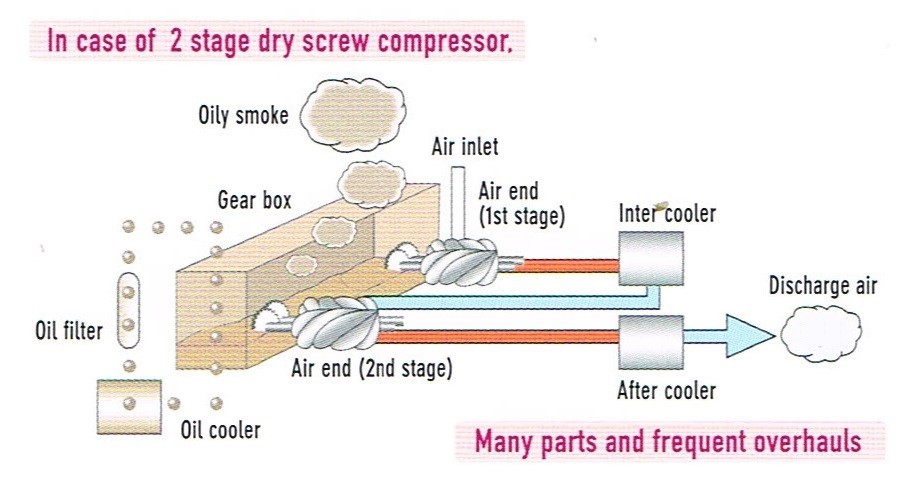

Compact, integrated layout — easier to maintain than traditional dry screw systems
