IHI Condensate Drain
Condensate Drain Control Panel & Condesnate Drain - Zero Loss
Smart Control. Zero Loss. Full Protection.
A two-part system engineered for clean, efficient compressed‑air networks: a central Condensate Drain Control Panel for automation, alarms, and safety — paired with Zero‑Loss Condensate Drains that discharge water only when detected, preserving compressed air and energy.
IHI Condensate Drain
Condensate Drain Control Panel & Condesnate Drain - Zero Loss
Smart Control. Zero Loss. Full Protection.
A two-part system engineered for clean, efficient compressed‑air networks: a central Condensate Drain Control Panel for automation, alarms, and safety — paired with Zero‑Loss Condensate Drains that discharge water only when detected, preserving compressed air and energy.
IHI Condensate Drain
Condensate Drain Control Panel & Condesnate Drain - Zero Loss
Smart Control. Zero Loss. Full Protection.
A two-part system engineered for clean, efficient compressed‑air networks: a central Condensate Drain Control Panel for automation, alarms, and safety — paired with Zero‑Loss Condensate Drains that discharge water only when detected, preserving compressed air and energy.
Products: Water Flooded Oil-Free
Products: Water Flooded Oil-Free
Products: Water Flooded Oil-Free
IHI Condensate Drain Management Suite
Control Panel
Zero-Loss Drain
Product Overview
IHI’s condensate management suite combines a centralized Condensate Drain Control Panel with Zero-Loss Electric Condensate Drains. The panel provides alarms, timed bypass control, and per-stage test buttons; the zero-loss drains discharge only when water level is detected, eliminating compressed-air wastage. Deployed together, they deliver reliable, low-maintenance condensate removal for multi-stage compressors.
Power & Enclosure: 110–230 V, 50/60 Hz, 1-phase; IP45, 1.3 mm sheet steel, RAL 7032 epoxy power coating
Panel: 600 × 400 × 200 mm; single-door wall-mount; bottom cable entry; bypass control 1 per compressor stage
Zero-Loss Drains: SS304 vessel; 0–16 barg; 1–60 °C; installed at each compressor cooler stage

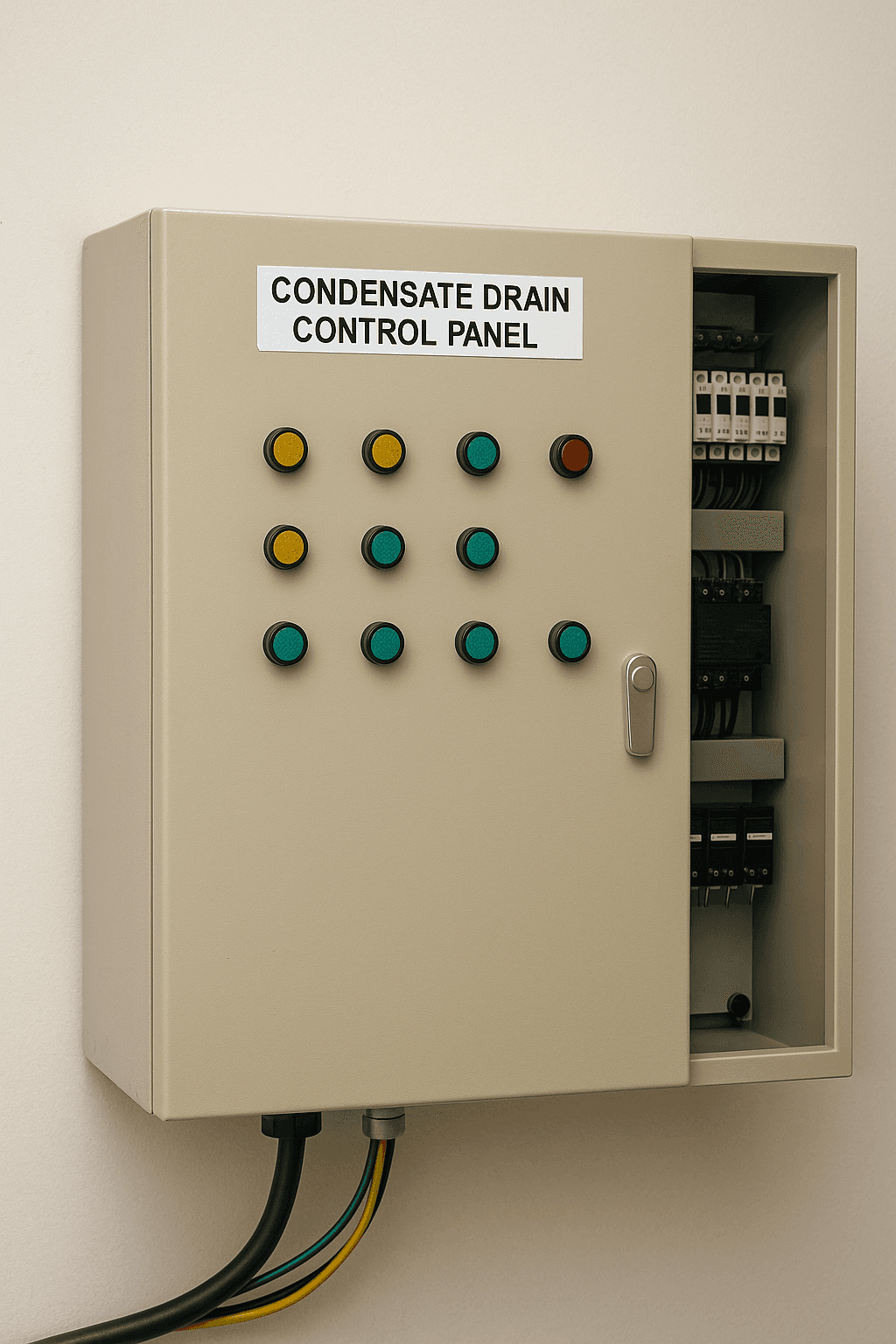

Condensate Drain Control Panel
Operation
The panel supervises stage drains. On fault it executes a safe timed bypass cycle, guaranteeing removal while signalling alarms to operators. Manual test lets maintenance verify operation without interrupting production.
Continuously monitors each condensate drain and triggers an alarm on any malfunction.
On alarm, automatically starts a cyclic timer that opens and closes the bypass valve according to a user-defined duty cycle.
Lets operators set the valve open duration to ensure complete condensate discharge.
Supports solenoid, motorised, or pneumatic bypass valves, powered from the control panel.
Provides dedicated test buttons for each bypass solenoid to verify operation without interrupting production.
Single-door wall mounting
Bypass control: 1 per compressor stage
Standard Panel Configuration
| Dimension | 600 mm (L) × 400 mm (W) × 200 mm (H) |
|---|---|
| Design | Single door • Wall mounting |
| Main Power Supply | 110V–230V • 50 or 60 Hz • 1-phase |
| Enclosure Material | 1.3 mm sheet steel |
| Enclosure Color | RAL 7032 epoxy powder coating |
| Degree of Protection | IP45 |
| Cable Entry | Bottom |
| Condensate Drain | Electrically operated stainless-steel vessel with timed purge to eliminate compressed-air wastage |
| Solenoid Valves | Bypass control — 1 per compressor stage |
| Indicating Lights | a) Main power supply b) Power to condensate drain c) Bypass valve active d) Drain alarm |
Condensate Drain Control Panel
Operation
The panel supervises stage drains. On fault it executes a safe timed bypass cycle, guaranteeing removal while signalling alarms to operators. Manual test lets maintenance verify operation without interrupting production.
Continuously monitors each condensate drain and triggers an alarm on any malfunction.
On alarm, automatically starts a cyclic timer that opens and closes the bypass valve according to a user-defined duty cycle.
Lets operators set the valve open duration to ensure complete condensate discharge.
Supports solenoid, motorised, or pneumatic bypass valves, powered from the control panel.
Provides dedicated test buttons for each bypass solenoid to verify operation without interrupting production.
Single-door wall mounting
Bypass control: 1 per compressor stage
Standard Panel Configuration
| Dimension | 600 mm (L) × 400 mm (W) × 200 mm (H) |
|---|---|
| Design | Single door • Wall mounting |
| Main Power Supply | 110V–230V • 50 or 60 Hz • 1-phase |
| Enclosure Material | 1.3 mm sheet steel |
| Enclosure Color | RAL 7032 epoxy powder coating |
| Degree of Protection | IP45 |
| Cable Entry | Bottom |
| Condensate Drain | Electrically operated stainless-steel vessel with timed purge to eliminate compressed-air wastage |
| Solenoid Valves | Bypass control — 1 per compressor stage |
| Indicating Lights | a) Main power supply b) Power to condensate drain c) Bypass valve active d) Drain alarm |
Condensate Drain Control Panel
Operation
The panel supervises stage drains. On fault it executes a safe timed bypass cycle, guaranteeing removal while signalling alarms to operators. Manual test lets maintenance verify operation without interrupting production.
Continuously monitors each condensate drain and triggers an alarm on any malfunction.
On alarm, automatically starts a cyclic timer that opens and closes the bypass valve according to a user-defined duty cycle.
Lets operators set the valve open duration to ensure complete condensate discharge.
Supports solenoid, motorised, or pneumatic bypass valves, powered from the control panel.
Provides dedicated test buttons for each bypass solenoid to verify operation without interrupting production.
Single-door wall mounting
Bypass control: 1 per compressor stage
Standard Panel Configuration
| Dimension | 600 mm (L) × 400 mm (W) × 200 mm (H) |
|---|---|
| Design | Single door • Wall mounting |
| Main Power Supply | 110V–230V • 50 or 60 Hz • 1-phase |
| Enclosure Material | 1.3 mm sheet steel |
| Enclosure Color | RAL 7032 epoxy powder coating |
| Degree of Protection | IP45 |
| Cable Entry | Bottom |
| Condensate Drain | Electrically operated stainless-steel vessel with timed purge to eliminate compressed-air wastage |
| Solenoid Valves | Bypass control — 1 per compressor stage |
| Indicating Lights | a) Main power supply b) Power to condensate drain c) Bypass valve active d) Drain alarm |
Product Description
A paired solution: a centralized Condensate Drain Control Panel plus Zero-Loss Electric Condensate Drains. The panel supervises every stage, raises alarms on faults, and runs a timed bypass cycle if needed; the zero-loss drains open only at a detected water level, so no compressed air is wasted. Together they deliver clean, low-maintenance condensate removal for multi-stage compressors.
Control Panel (central brain)
Single-door wall-mount enclosure 600×400×200 mm, 1.3 mm sheet steel, RAL 7032 epoxy, IP45, bottom cable entry; 110–230 V, 50/60 Hz, 1-phase. Functions: continuous monitoring, alarm on malfunction, user-defined cyclic timer and adjustable open duration for the bypass valve, support for solenoid/motorised/pneumatic valves (panel-powered), per-stage test buttons, and indicators for main power, drain power, bypass active, and drain alarm.
Zero-Loss Drains (field devices)
Level-sensing discharge with a stainless-steel ball valve to resist clogging; install at each compressor-cooler stage. Standard configuration: SS304 vessel, 0–16 barg, 1–60 °C, 110–230 V, 1-phase. Models: ED090 / ED180 / ED400 with capacities 90 / 180 / 360 m³/min, inlets ½” / ¾”, outlet Ø10 mm, weights 3.8 / 5.3 / 7.5 kg.
Product Description
A paired solution: a centralized Condensate Drain Control Panel plus Zero-Loss Electric Condensate Drains. The panel supervises every stage, raises alarms on faults, and runs a timed bypass cycle if needed; the zero-loss drains open only at a detected water level, so no compressed air is wasted. Together they deliver clean, low-maintenance condensate removal for multi-stage compressors.
Control Panel (central brain)
Single-door wall-mount enclosure 600×400×200 mm, 1.3 mm sheet steel, RAL 7032 epoxy, IP45, bottom cable entry; 110–230 V, 50/60 Hz, 1-phase. Functions: continuous monitoring, alarm on malfunction, user-defined cyclic timer and adjustable open duration for the bypass valve, support for solenoid/motorised/pneumatic valves (panel-powered), per-stage test buttons, and indicators for main power, drain power, bypass active, and drain alarm.
Zero-Loss Drains (field devices)
Level-sensing discharge with a stainless-steel ball valve to resist clogging; install at each compressor-cooler stage. Standard configuration: SS304 vessel, 0–16 barg, 1–60 °C, 110–230 V, 1-phase. Models: ED090 / ED180 / ED400 with capacities 90 / 180 / 360 m³/min, inlets ½” / ¾”, outlet Ø10 mm, weights 3.8 / 5.3 / 7.5 kg.
Product Description
A paired solution: a centralized Condensate Drain Control Panel plus Zero-Loss Electric Condensate Drains. The panel supervises every stage, raises alarms on faults, and runs a timed bypass cycle if needed; the zero-loss drains open only at a detected water level, so no compressed air is wasted. Together they deliver clean, low-maintenance condensate removal for multi-stage compressors.
Control Panel (central brain)
Single-door wall-mount enclosure 600×400×200 mm, 1.3 mm sheet steel, RAL 7032 epoxy, IP45, bottom cable entry; 110–230 V, 50/60 Hz, 1-phase. Functions: continuous monitoring, alarm on malfunction, user-defined cyclic timer and adjustable open duration for the bypass valve, support for solenoid/motorised/pneumatic valves (panel-powered), per-stage test buttons, and indicators for main power, drain power, bypass active, and drain alarm.
Zero-Loss Drains (field devices)
Level-sensing discharge with a stainless-steel ball valve to resist clogging; install at each compressor-cooler stage. Standard configuration: SS304 vessel, 0–16 barg, 1–60 °C, 110–230 V, 1-phase. Models: ED090 / ED180 / ED400 with capacities 90 / 180 / 360 m³/min, inlets ½” / ¾”, outlet Ø10 mm, weights 3.8 / 5.3 / 7.5 kg.
